17 Circuits Pancake Flat Slip Ring IP65

Name: 17 Circuits Pancake Flat Slip Ring IP65
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPK000-0410-08S-E2

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pcs/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Current : 10 A

Voltage : 220 VDC/AC

Working Speed : 0~50 rpm

Contact : Precious Metal

Working Temperature : -40~+70℃

IP : IP65

Contact Now

7 Circuits Pancake / Flat Slip Ring with IP65 High Protection Level Transferring Ethernet and Other Signals

Description

The LPK000-0410-08S-E2 pancake slip ring is designed with many circuits up to 17ckt. It can transmit 100M Ethernet, RS and other signals. Reliable contact and ultra-low electrical noise of the light slip ring, together with a high rotating speed are the notable characteristics. They are proven to be of qualified products, secured by the full-fledged quality control center. Moreover, Such Pancake units for encoder are equipped with ready-made photoelectric encoders. Moreover, they can stand the wet calorific test. 360° rotating transmission without surge kind of interference or data package loss wins the customers’ recognition.

Features & Advantages

Transmit Ethernet, USB, RS, Canbus, Firewire and other signals in 360° rotation
Reliable performance with high rotating accuracy
Low friction force, contact resistance and no friction fragment with advanced fiber brush technology
Many circuits (17)
Reduced unit integrating signal, power and HF transmission, easy to install
Long service life

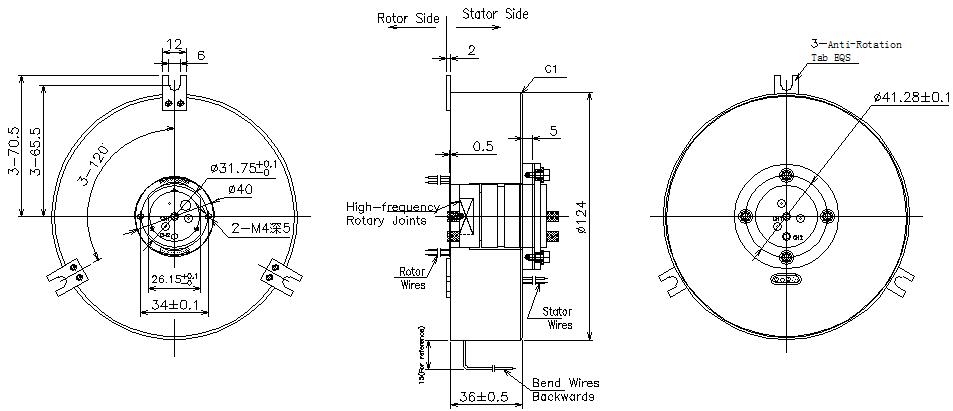

Outline Drawing

17 Circuits Pancake Flat Slip Ring IP65

Specification

Specifications
Operating Speed	0-50 rpm
Circuits	17
Voltage	220 VAC/DC
Rated Current	10 A per circuit
Temperature Range	-40℃ to +70℃
Humidity	95%RH
IP	IP65
Lead Length	Stator:1000mm Rotor: 1000mm
Dielectric Strength	≥500V@50Hz (Current) 300V@50Hz (Signal)
Insulation Resistance	300MΩ@500VDC(Current) 100MΩ@300VDC(Signal)
Electrical Noise	≤70mΩ
Contact	Precious Metal
Housing	Aluminum Alloy

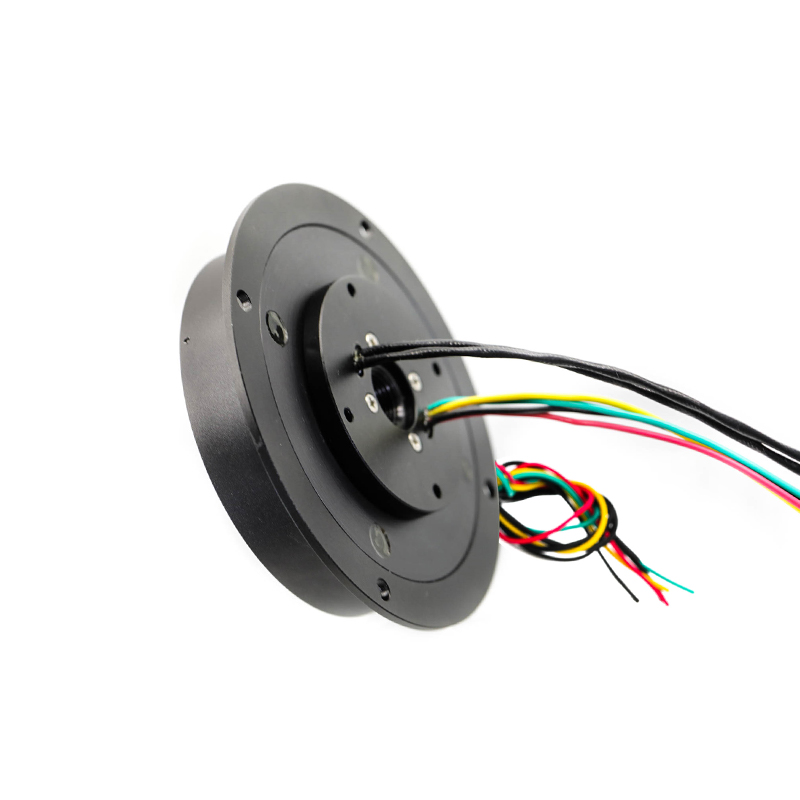

Product Display

17 Circuits Pancake Flat Slip Ring IP65
