2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia

Name: 2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia
Brand: JINPAT
Price: 1 USD

Quality 2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia wholesale

Brand Name : JINPAT

Model Number : LPK030-0204

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 500 pieces /week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Internal dimension : 30mm

Number of circuits : 2

Current rating : 4A per circuit

Contact material : gold to gold

Rating Voltage : 50VDC

Working Humidity : 60%RH

Working Tempreture : -20℃--+70℃

working Speed : 0-48rpm

Housing Material : Aluminum Alloy

Contact Now

2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia for Military Use

Description

A slip ring is a rotary coupling used to transfer electric current from a stationary unit to a rotating unit. This is accomplished by either:
Holding the center core stationary while the brushes and housing rotate around it.
Holding the brushes and housing stationary while the center core is allowed to rotate

Fine brass rings are used for signals and can be plated with silver, gold or rhodium where low contact resistance and low noise levels are required. The best results are obtained when these precious metal surfaces are used in conjunction with silver-graphite brushes. These units are suitable for slow speed only when fitted with brass rings.

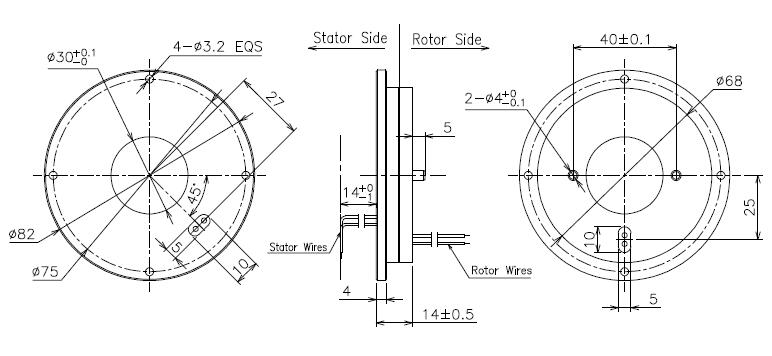

Outline Drawing

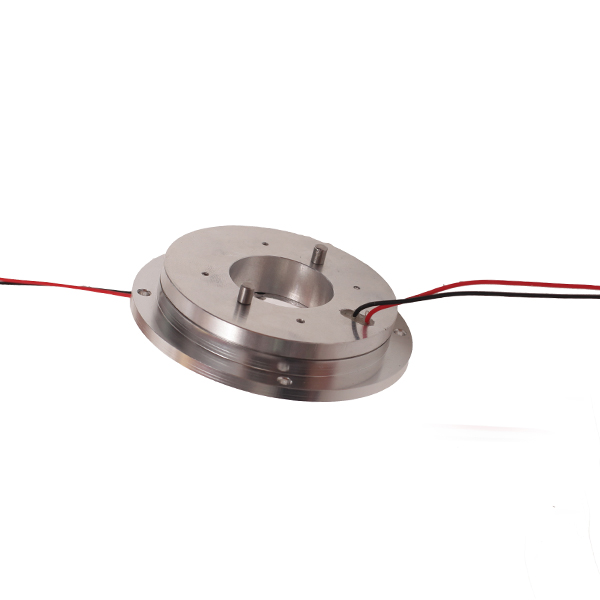

Product display

2 Circuits Pancake Slip Ring Transmitting 4A Current with 30mm Bore Dia
