6 Circuits ID 12.7mm Through Bore Slip Ring with 10 Amps Per Circuit

Name: 6 Circuits ID 127mm Through Bore Slip Ring with 10 Amps Per Circuit
Brand: JINPAT
Price: 1 USD

Quality 6 Circuits ID 12.7mm Through Bore Slip Ring with 10 Amps Per Circuit wholesale

Brand Name : JINPAT

Model Number : LPT012-0610

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 1000 units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Number Of Circuits : 6 circuit

Current Rating : 10A per circuit

Inner Size : 12.7mm

Operating Speed : 500 rpm

Voltage Rating : 380VAC/DC or higher

Housing Material : Aluminum alloy

Contact Now

6 Circuits ID 12.7mm Through Bore Slip Ring with 10 Amps Per Circuit
Description

The LPT012 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 12.7mm through-bore for routing hydraulic or pneumatic lines and a compact 55mm outside diameter for minimal space applications. The 5 amps /circuit are available in 6, 12, 18 and 24 ring configurations in 4 housing length. Similar in design to our very popular LPT012 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications. Fiber brushes do not require lubrication and produce virtually no wear debris, for maintenance free, lifetime operation.

LPT012-0610 through hole slip ring features 6 circuits and routing 10A per circuit.

Specification
Circuits	6 circuits
Operating Speed	0-500rpm
Working Temperature	-20℃~ +60℃
Working Humidity	60%RH or higher
Electrical:
Voltage Rating	380VAC/DC or higher
Current Rating	10A per circuit
Dielectric Strength	≥1000V@50Hz between each circuit
Insulation Resistance	1000MΩ@ 500VDC
Electrical Noise	1mΩ Min
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP54 or higher

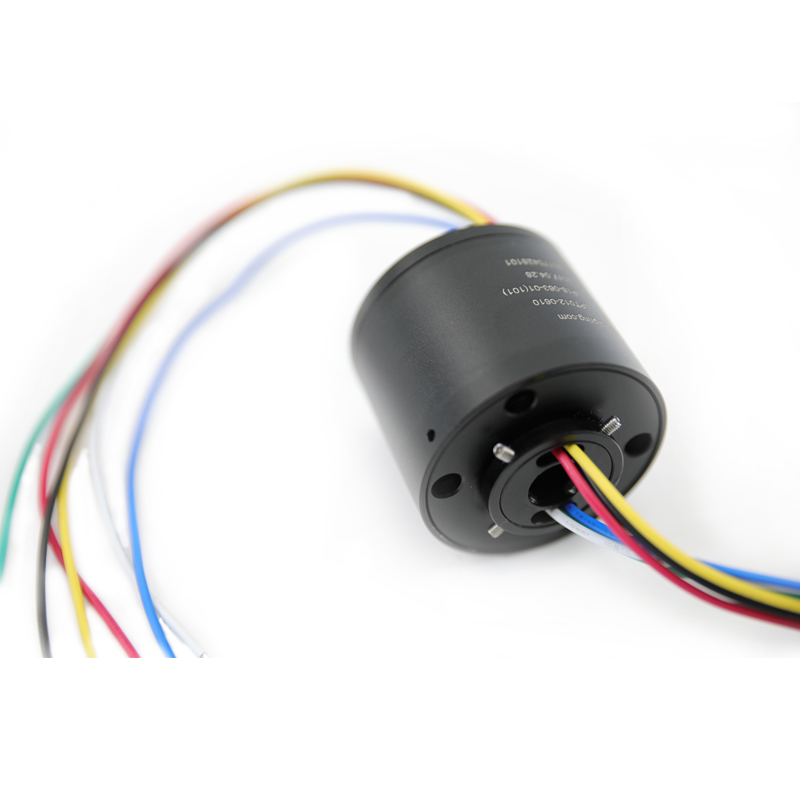

Product Display
6 Circuits ID 12.7mm Through Bore Slip Ring with 10 Amps Per Circuit
