12 Circuits Customized Slip Ring 240VAC IP54

Name: 12 Circuits Customized Slip Ring 240VAC IP54
Brand: JINPAT
Price: 1 USD

Brand Name : JINPAT

Model Number : LPT025-1205

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Via diameter : 25.4mm

Ring current : 12

Working speed : 0~300rpm

Voltage : 240 VAC/DC

Insulation : 500MΩ@500VDC

Contact : Precious metal

Humidity : ≤60%RH

Protection Grade : Protection Grade

Contact Now

Description

The LPT025-1205 slip ringcan be used in any electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. The slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals.

Specification

Circuits	12
Current Rating	5A
Voltage	240 VAC/DC
Dielectric Strength	1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	25.4 mm
Working Speed	0~300 RPM
Contact	Precious metal
Housing	Aluminum alloy
Wire Length	300mm (rotor), 300mm (stator)
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	Protection Grade

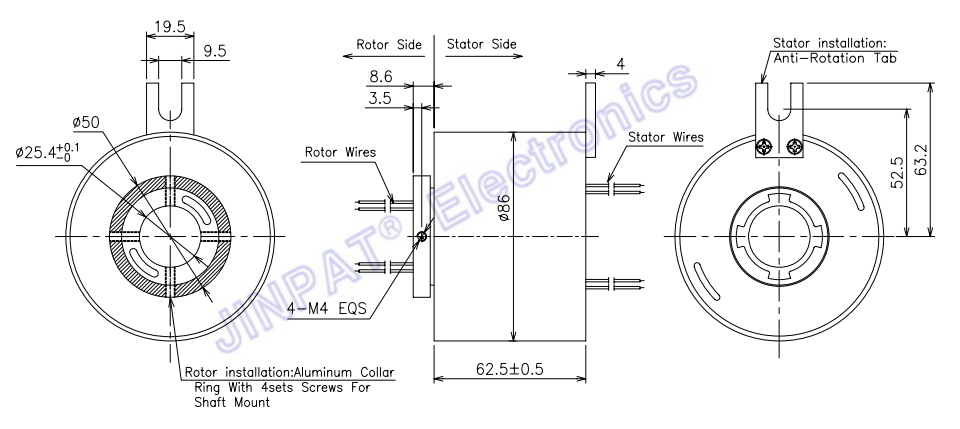

Outline Drawing

12 Circuits Customized Slip Ring 240VAC IP54

Product Display

12 Circuits Customized Slip Ring 240VAC IP54
