Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT

Name: Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT
Brand: JINPAT
Price: 1 USD

Quality Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT wholesale

Brand Name : JINPAT

Model Number : LPT012B-0602-HS-HT

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : T/T, C/C, Paypal

Supply Ability : 500 pieces / week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Housing Material : Engineering plastic

Contact Material : Gold-Gold

Inner Diameter : Φ12.7mm

Working Speed : 0~2000rpm

IP : IP50

Working Humidity : ≤60%RH

Serial communication : RS232, RS485, RS422, etc.

Universal Serial Bus : USB2.0

Contact Now

Industrial 240VAC Through Hole Slip Ring IP50 Engineering Plastic 6CKT

electrical slip rings industrial,can integrate high frequency, fiber other signal

LPT series are through-bore slip rings (the center hole can pass through the drive shaft, gas-liquid passage; it can

also integrate high frequency, fiber, encoder, waveguide, gas and liquid and other joints). The use of advanced fiber

brush ensures reliable contact under extremely low friction. The center hole is available from 0 to 1000mm. The current

is from mA to 5000 amps. The voltage can be up to 10000 volts, which can fully meet different needs of transmission.

Electronic & Electruc			Mechanical
Circuits	Total	6CKT	Working Speed	0~2000rpm
	Detail	6X2A	Inner Diameter	Φ12.7mm
Rating Voltage		240VAC	Contact Material	Gold-Gold
Dielectric Strength		500VAC@50Hz	Housing Material	Engineering plastic
Insulation Resistance		≥300MΩ@300VDC	Lead Wire Length	Stator:300mm Rotor:300mm
Environment			Remarks
Working Temperature		-20°C~+125°C	Application	/
Working Humidity		≤60%RH	Other	/
IP		IP50	Note:"P" stands dor power, "S" stands for signal

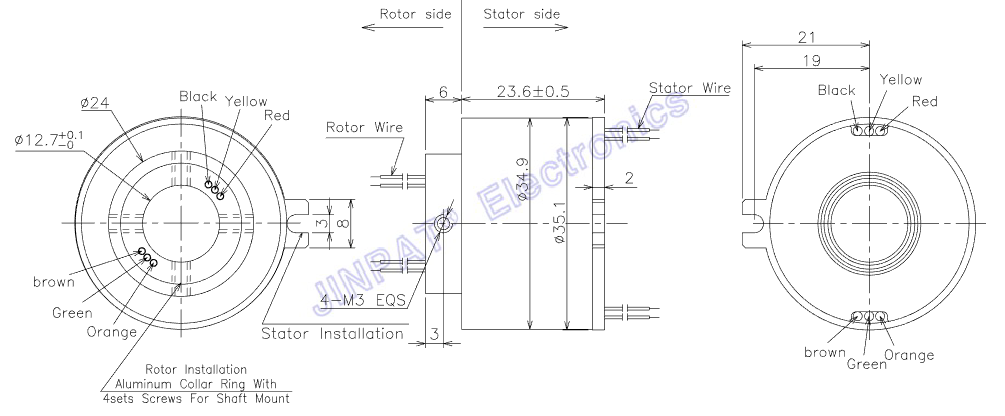

LPT012B-0602-HS-HT-Outline Drawing
