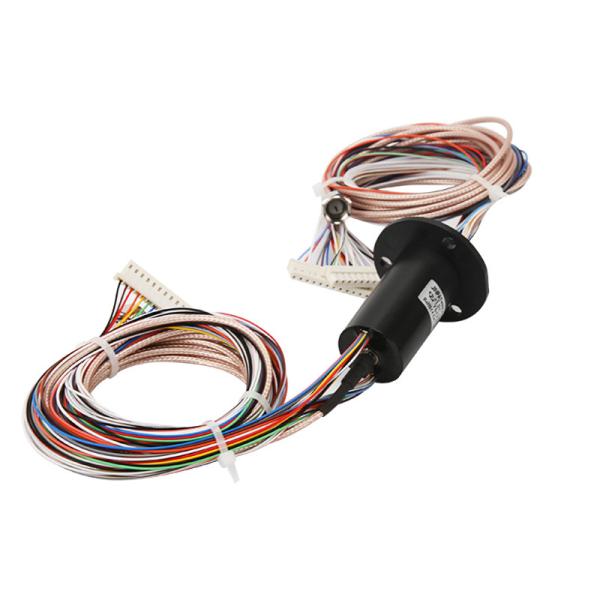

High frequency slip ring is a product specially developed to meet high-speed serial digital signal or analog signal transmission.
This series of products support high-frequency signal transmission, and also support mixed transmission of high-frequency signal and 24V control signal, communication signal, power supply, fluid medium. The high-frequency signal adopts 50/75Ω characteristic impedance RF coaxial structure head.
Feature
- Gold-gold contact on the contact material, which can meet the service life of 100 million revolutions
- 90-degree V-groove design can rotate 360 degree smoothly and unlimitedly, with low torque, low wear, and low electronic noise
- Anti-aging and high temperature resistance
Specifications
| Electrical & Electronics | Mechanical |
| Circuits | total 24circuits
24*2A | Rotating Speed | 0~300rpm |
| Rating Voltage | 240 VAC/DC | Contact Material | Gold To Gold |
| Dielectric Strength | 500VAC@50Hz(P) 300VAC@50Hz(S) | Housing Material | Engineering Plastics |
| Insulation Resistance |
≥100MΩ@500VDC (P) ≥100MΩ@100VDC (S) | Wire Length |
Stator: 250mm
Rotor: 250mm |
| Lead Wire Size | AWG28 # |
| Environmental | Others |
| Temperature | -20°C~+60°C | Life span | Customizable |
| Humidity | ≤60%RH | Note: "P" stands for power, "S" stands for signal |
| Protection grade | Customizable |
| Coaxial Parameter |
| Connect Model | BNC/SMA | Frequency range | 0-3GHz |
| Specific Impedance | 50/75Ω | Housing Material | Brass |
| Insertion Loss | <1.2dB | Contact Material | Precious Metal |
| Insertion Loss-WOW | <0.1dB | Cable Size | RG316/RG179 |
| VSWR | <1.6 | Cable Length | Stator: 250mm |
| VSWR-WOW | <0.1 | Rotor: 250mm |
Outline Drawing
