300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control

Name: 300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control
Brand: JINPAT
Price: 1 USD

Quality 300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control wholesale

Brand Name : JINPAT

Model Number : LPT050 -0610

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Feature : Remote Control

Maximum speed : 300rpm

Assembly situation : Ready to Go

Contact Now

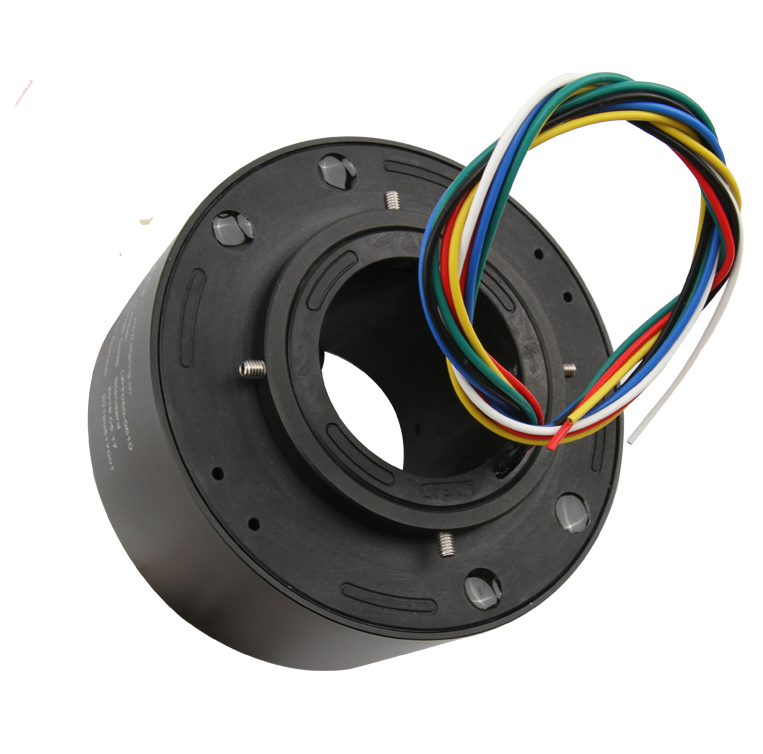

The 50mm unobstructed through-bore provides routing space for hydraulics, pneumatics or for a concentric shaft mount. The LPT050 uses our fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris. The LPT050 features field serviceable brush blocks.

Specification
Circuits	1-24 circuits
Operating Speed	0-300rpm
Working Temperature	-20~ +60
Working Humidity	60%RH or higher
Electrical:
Voltage Rating	380VAC/DC or higher
Current Rating	2A/5A/10A/15A per circuit
Dielectric Strength	≥800V@50Hz between each circuit
Insulation Resistance	50MΩ@ 500VDC
Electrical Noise	30mΩ Min
Mechanical:
Contact Material	Precious metal
Lead Wire Length	Standard 300mm (11.811inch)
Housing Material	Aluminum alloy
Torque	≤9.25 g·m (for reference )
Protection	IP44 or higher

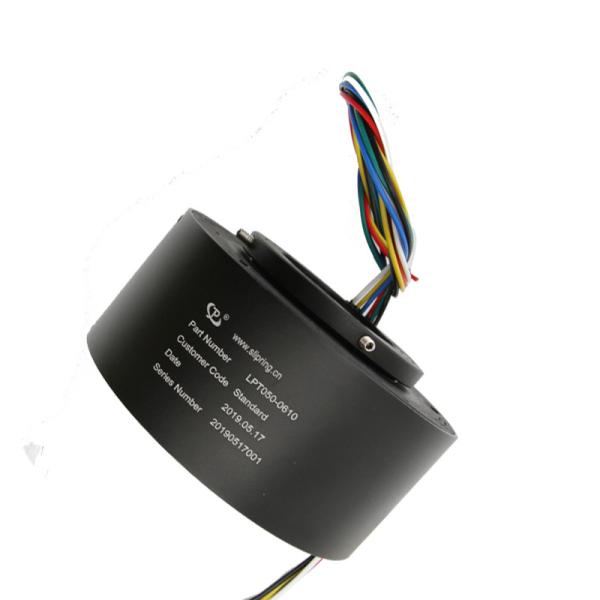

Product Image

Product Tags:

hollow shaft slip ring

through bore electrical slip ring

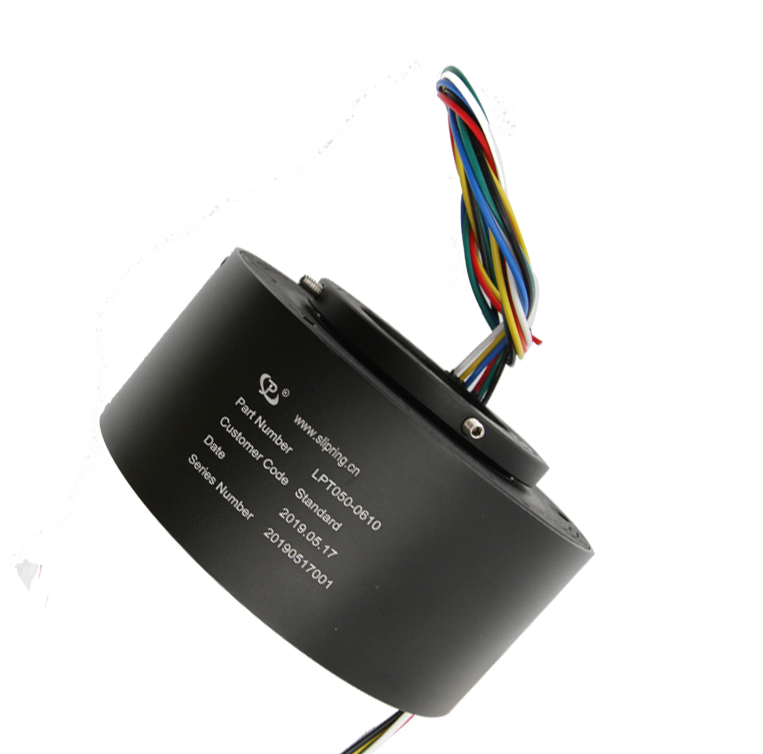

300rpm Speed Through Hole Slip Ring Contact Material Precious Metal Remote Control Images
