Test Equipment Compact Slip Ring 24 Circuit 10A 0~300rpm Long Life

Name: Test Equipment Compact Slip Ring 24 Circuit 10A 0300rpm Long Life
Brand: JINPAT
Price: 1 USD

Quality Test Equipment Compact Slip Ring 24 Circuit 10A 0~300rpm Long Life wholesale

Brand Name : JINPAT

Model Number : LPT038-2410

Certification : ISO9001.ISO14000.CE.UL.FCC.RoHS

Place of Origin : China

MOQ : 1PCS

Price : Negotiable

Payment Terms : TT/CC/Paypal

Supply Ability : 100K units/week

Delivery Time : 2 weeks ARO

Packaging Details : Standard/On Request

Working humidity : 60%RF below

Ring current : 24 circuit 10A

Working speed : 0~300rpm

Contact Now

The LPT038-2410 through bore slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

The part is LPT038 series slip ring that has a hole of φ38.1mm. It cn transmit 10A current in 12 circuits. Adopting advanced fiber brush technology, the part has a reliable performance with stable conatct and good conductivity.

Specification

Circuits	24
Current Rating	10A
Voltage	240 VAC/DC
Dielectric Strength	≥1000V@50Hz between circuits
Insulation	500MΩ@500VDC
Hole Diameter	38.1 mm
Working Speed	0~300 RPM
Contact	Precious metal
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Outline Dimension

Test Equipment Compact Slip Ring 24 Circuit 10A 0~300rpm Long Life

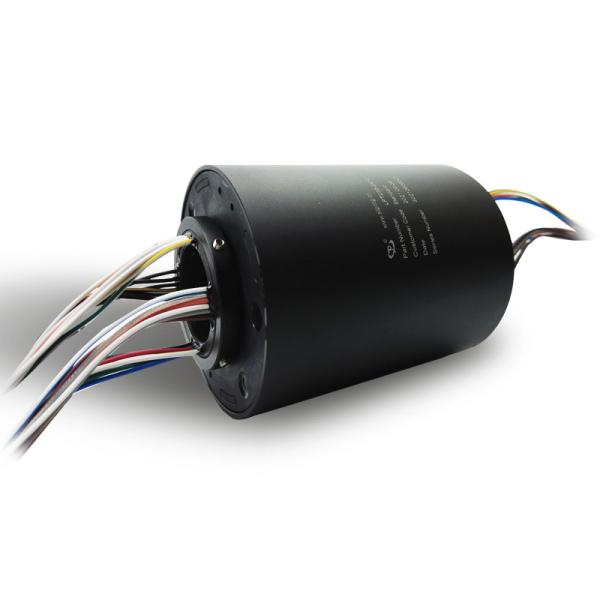

Product Display

Test Equipment Compact Slip Ring 24 Circuit 10A 0~300rpm Long Life
